MAINBOARD MSI A68HHM-E33 V2 DDR3 SOCKET FM2+ (AMD) 2 KHE RAM THÁO MÁY ( ĐÃ BÁN 01/10/2022)

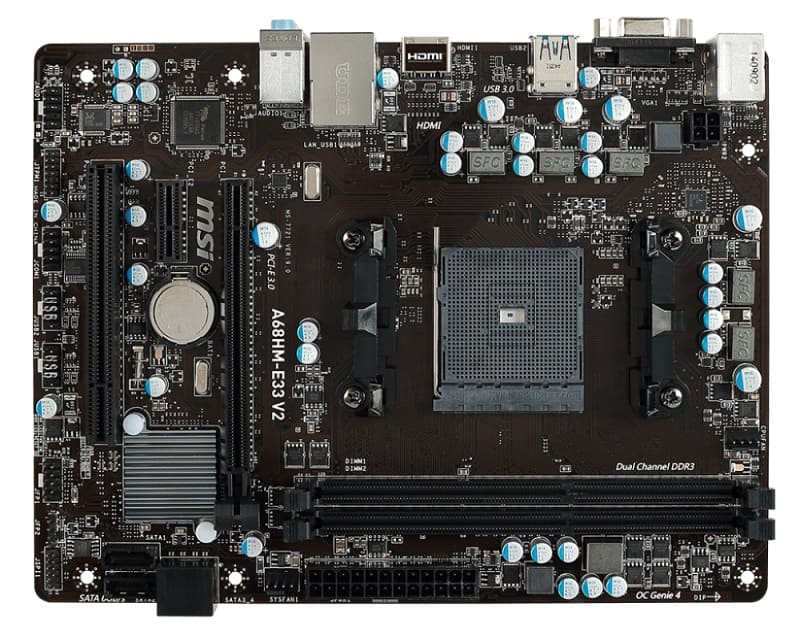

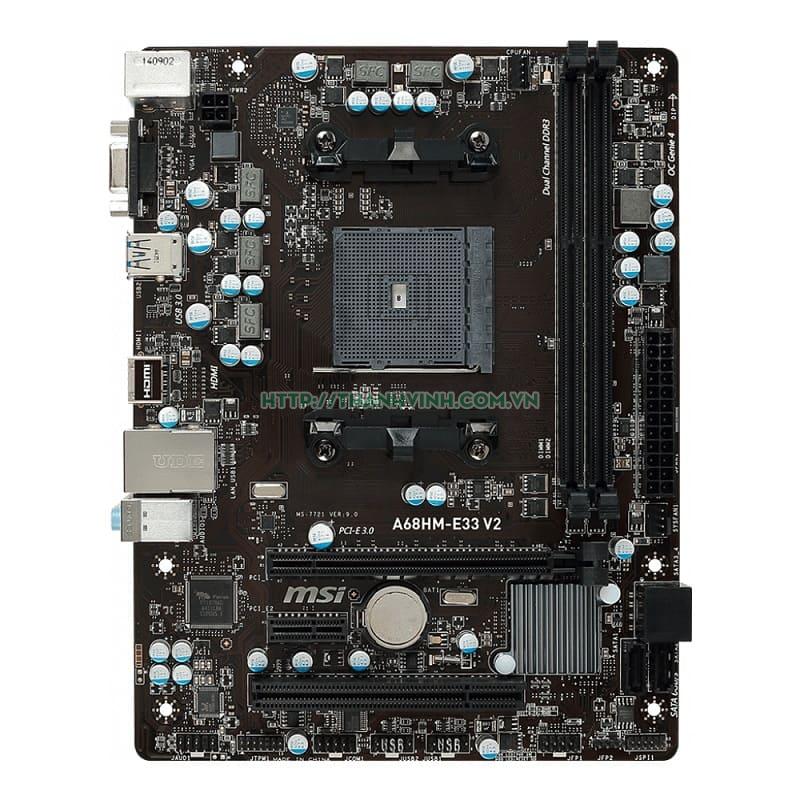

MAINBOARD MSI A68HHM-E33 V2 DDR3 SOCKET FM2+ (AMD) 2 KHE RAM THÁO MÁY

CPU:          Supports FM2+ Sockets for AMD A-series / Athlon Series processors

Chipset:     AMD A68H

Memory:

2 x DDR3 memory slots supporting up to 32 GB
Supports DDR3 2133 (OC)/ 1866 / 1600 / 1333 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports AMD Memory Profile (AMP)
Supports Extreme Memory Profile (XMP)

Slots

1 x PCIe 3.0 x16 slot
1 x PCIe 2.0 x1 slot
1 x PCI slot

Graphics

1 x VGA port, supporting a maximum resolution of 1920 x 1200 @ 60 Hz, 24bpp
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz, 36bpp / 3840 x 2160 @ 30 Hz, 36bpp / 1920 x 1200 @ 120 Hz, 36bpp / 1920 x 1200 @ 60 Hz, 36bpp

On-Board SATA

4 x SATA 6 Gb/s ports
Supports RAID 0, RAID 1, and RAID 10

USB

2 x USB 3.0 ports on the back panel
6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio:   Realtek ALC887 Codec

LAN  Realtek RTL8111G Gigabit LAN

Back Panel I/O Ports

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
2 x USB 3.0 ports
1 x HDMI port
1 x LAN (RJ45) port
2 x USB 2.0 ports
3 x audio jacks

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12 V power connector
4 x SATA III 6 Gb/s connectors
2 x USB 2.0 connectors (supports an additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Serial port connector
1 x Clear CMOS jumper

Mounting:       6 mounting holes
Dimensions    Micro-ATX Form Factor   8.9 x 6.8" / 22.6 x 17.3 cm

Sản phẩm được bảo hành 03 Tháng
